Set di generatori diesel Perkins
Created with Pixso.

Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators

Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators

Marchio: MBKL
Numero di modello: MB-200
MOQ: 1 set
prezzo: USD$210000-USD$268000
Condizioni di pagamento: L/c, t/t,
Capacità di approvvigionamento: 200SETS al mese
Informazioni dettagliate
Luogo di origine:
Cina
Certificazione:
CE&ISO
Marchio motore:
Perkins 1206A-E70TTAG3
Alternatore:
MBKL, Leroy Somer, Stamford
Pannello di controllo:
Smartgen, profondo mare
Potenza nominale:
200KW/250KVA
Fase:
AC monofase monofase / AC trifase
Frequenza:
50Hz/60Hz
Tensione nominale:
230V / 400V
Velocità:
1500rpm/1800 giri/min
Corrente nominale:
360a
Tipo:
Tipo aperto / tipo silenzioso
Garanzia:
12 mesi / 1000 ore
Carburante:
Diesel
ATS:
Opzionale
Imballaggi particolari:
Plastica avvolta sui portatori di polvere come requisiti del consumatore. Sono disponibili LCL, 20 p
Capacità di alimentazione:
200SETS al mese
Evidenziare:

Silent Type Diesel Generator set

,

250KVA Diesel Generator set

,

200KW Diesel Generator set

Descrizione del prodotto

Brand New Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators price



Perkins diesel engine advantage



1. Original Perkins diesel engine model :1206A-E70TTAG3
2. Comfortable, lower vibration and noise.
3.
The emission requirements o fnon-road diesel engines have been meet , and some products hanveachieved
the U.S.EPA, EuropeE-mark, india CPCB and other emission standars.



Diesel generator specification as below:

Genset

Model

 MB-200

Output Power

200KW/250KVA

Power Factor

COSΦ=0.8(lagging)

Maximum Output Current

360A

Weight

2458KG

Silent Genset Dimensions

3500×1080×2120mm

Voltage

400/230

Frequency

50Hz

  Diesel Engine

Manufacturer

Perkins

Model

1206A-E70TTAG3

Rotate Speed

1500RPM

Power

 248.6KW

Fuel Consumption

212g/kw.h

Lube Oil Capacity

 16L

Cylinder/Stroke

105/135mm

Compression Ratio

16:1

Gas Displacement

7.01L

Cooling Liquid Capacity

30L

Configuration

6 in line ,four-stroke, Turbocharged, Charge Air Cooled

Cooling Mode

Closed circuit water cooling

Speed Control System

Electronic Govenor

Starting Mode

24V DC

Filter System

Dry air filter, fuel filter, oil filter

  Alternator

Manufacturer

Wuxi Stanford Intelligent Technology Co.Ltd

Model

S6L1D-G41

Voltage Control Mode

AVR (automatic voltage regulation)

Voltage Regulation

±1%

Rated Voltage/Frequency/Power Factors

400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire

Steady State Frequency

Better than 5%

No-load Voltage Adjust Range

≥95% - 105%

Insulation Class/Protection Class

H / IP22

Excitation Type

Brushless

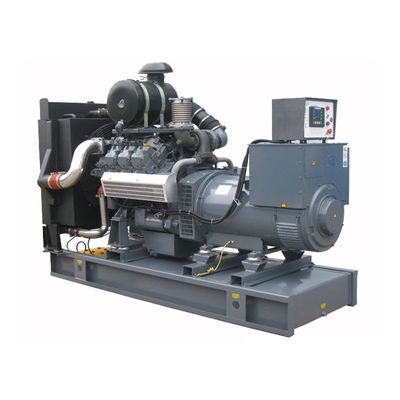

Pictures for reference only as below:


Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators 0Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators 1Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators 2


Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators 3


Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



About Mingbang company:



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai


Mingbang works closely with all large power manufactures such as , Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,

and so on. Key diesel generator stock ranges from 3KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will support you the most reliable and most cost-efficient generators and accessories. Weclome to visit our factory!


Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators 4Perkins Engine 1206A-E70TTAG3 Diesel Generator set 200KW/250KVA open/silent type power generators 5



RFQ


1. What is your warranty period?


Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


2. What is your payment terms?


T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.


3. What is your delivery time?


As usually the delivery time is 7 to 15 working days.If you have special requirements, the delivery will be longer. Kindly contact us to confirm it.


4. Can the generators be customized?


Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


5. Can you use our logo?


Yes. For mass orders, we can use customer's logo instead of ours.
